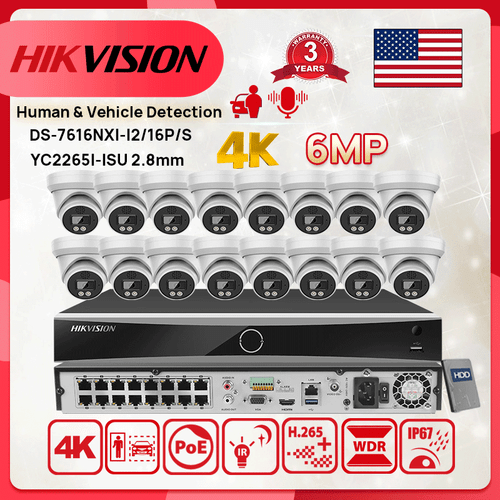

4K Hikvision 16ch 16 POE CCTV System Kit 6MP Acusense 2-Way Audio IP Camera Lot

Sale price  $1,410.99 Regular price  $2,116.99
eBay
    4K Hikvision 16ch 16 POE CCTV System Kit 6MP Acusense 2-Way Audio IP Camera Lot

    🌷Username:admin
    Password:Set on activation(of NVR) and 123456(of camera)
    🌷Phone App:Hik-connect
    PC ClientiVMS-4200
    Search ToolSADP
    This NVR is the original Hikvision NVR, it can be upgraded on the official website of Hikvision.
    And the camera is Hikvision compatible camera

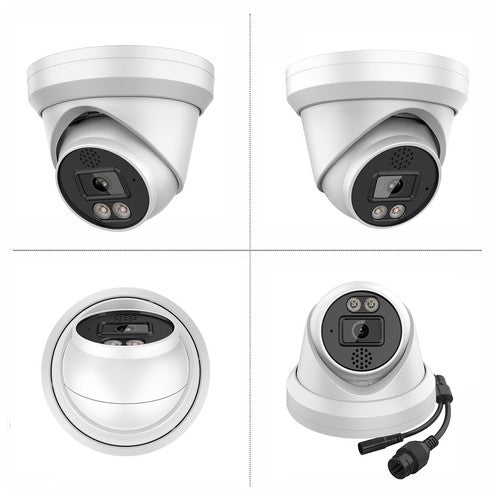

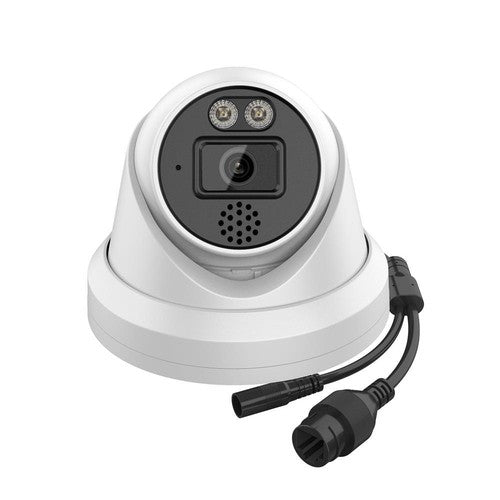

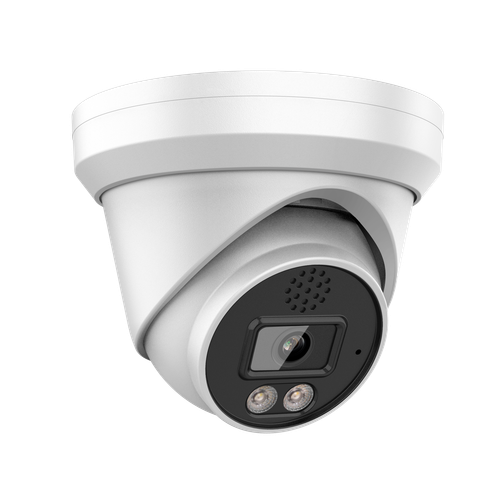

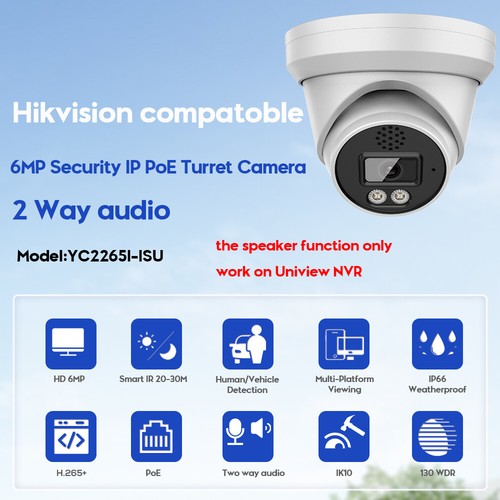

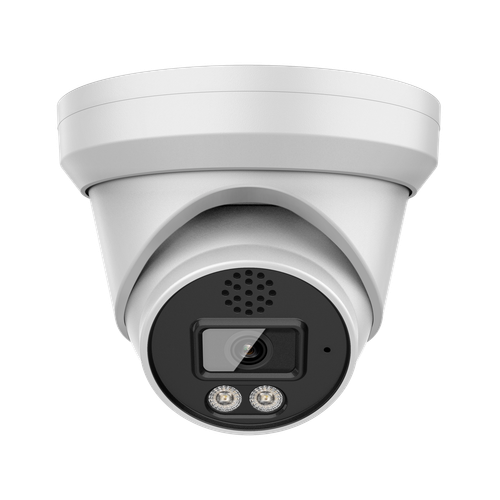

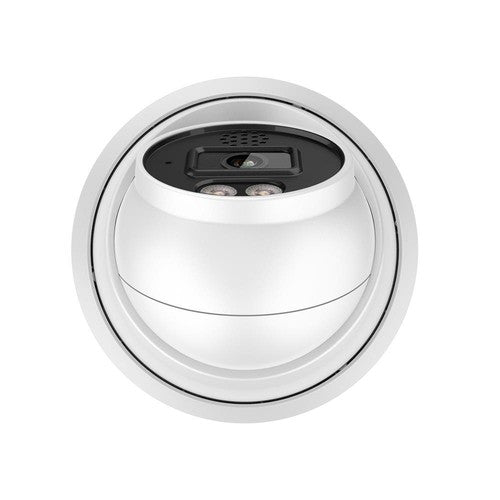

    YC2265I-ISU 6MP Hikvision Compatible IR Two-way Audio Turret IP Camera
    > 1/2.8" Sony CMOS sensor
    > 6MP realtime resolution 3072x2048
    > Low illumination 0.01Lux

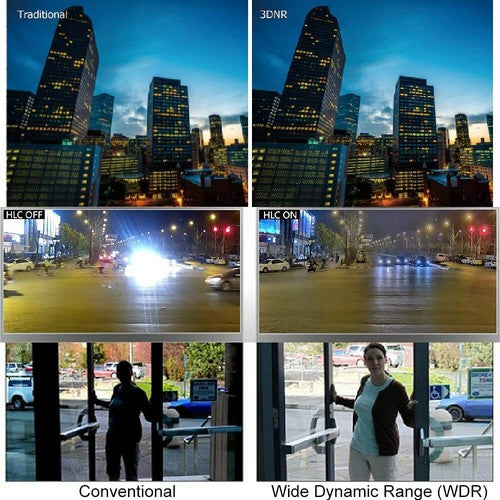

    > Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR,Shutter, IR-CUT
    > D-WDR,Mirror, rotate, Defogging
    > Multiply Style OSD Overlay,Motion Detection, Privacy Mask
    > RTSP and O-N-V-I-F 17.06 compatible with many third-party NVR
    > Smart264/Smart265 dual-stream media server
    > Easy-to-use P2P Cloud service
    > Support user authentication, video data encryption
    > Support Alarm Snapshot to Email and FTP
    > Multiply WEB browser IE,Firefox 32bit ESR, PC Client, Mobile APP remote access
    > RJ45 100mbps network port, IEEE802.3af PoE
    > Lightning protection 4000V

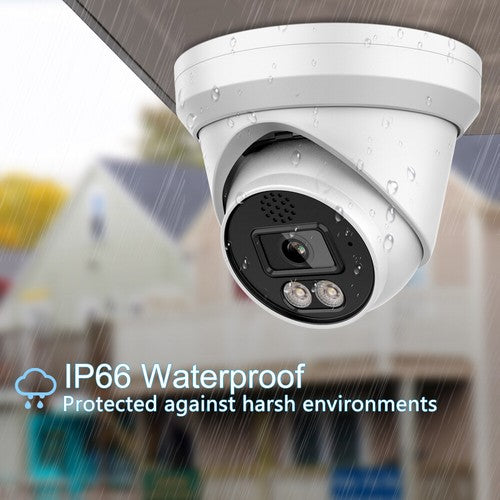

    > Strong water-proof housing, IP66
    > 2 pcs Array IR Leds, IR distance 20-30 meters
    > 2.8mm fixed lens
    > Human body detection, Vehicle detection

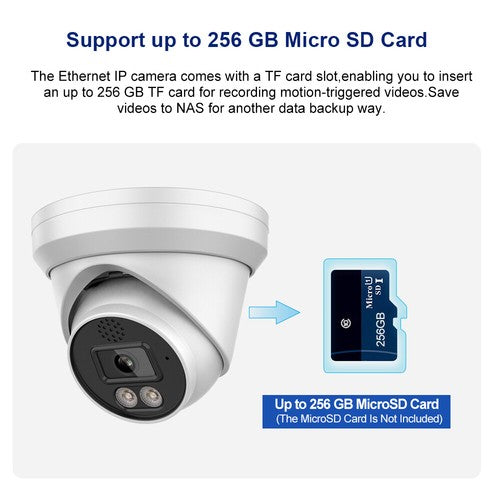

    > Two-way Audio, SD card slot (Max. 256GB),reset button

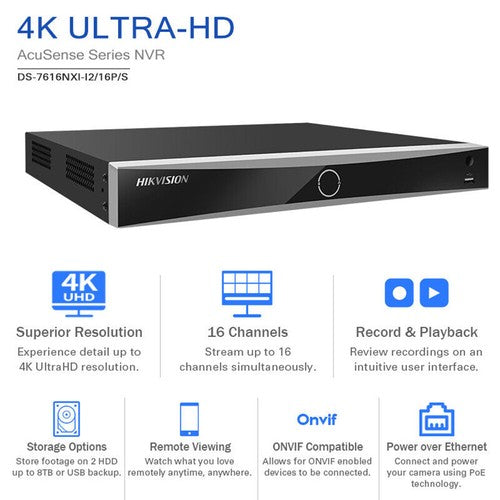

    DS-7616NXI I2/16P/S 16-ch 1U 16 PoE Acusense 4K NVR
    > Up to 16-ch IP camera inputs
    > H.265+/H.265/H.264+/H.264 video formats
    > Intelligent analytics based on deep learning algorithm Up to 4-ch perimeter protection
    >Up to 4-ch facial recognition for video stream
    >Up to 8-ch facial recognition for face picture
    >Up to 16-ch IP camera inputs
    >Up to 32-ch 1080p decoding capability
    Model YC2265I-ISU
    Camera
    Image Sensor 1/3" CMOS
    Effective Pixels 6 megapixels
    Electronic Shutter AUTO, 10-10000/min
    Min. Illumination 0.01Lux-F1.2(AGC ON), 0Lux IR on
    Day/Night Auto/Color/(B/W)/Timing
    WDR Digital WDR
    White Balance Auto/Manual
    BLC /HLC Support
    DNR 2D/3D DNR
    Other AGC,Motion Detection,Privacy Mask,Flip ,OSD overlay
    Encode
    Video Standard Smart264/Smart265
    Video Resolution Main Stream:
    25fps-6MP(3072x2048)/25fps-5MP(2592x1944)/4MP(2592x1520)/3MP, 30fps-1080P/720P
    Sub stream: 25fps-D1/VGA/360P/CIF, etc.
    Video Bitrates 512Kbps - 12Mbps, VBR/CBR
    Audio Standard G.711-u/G.711-a
    Built-in Mic Yes
    OSD Overlay Title and Time overlay
    IR Led
    IR Led 2 pcs Array IR Led
    IR Distance 20-30M
    Lens
    Focal length 2.8mm fixed lens
    Optional Function
    PoE, two-way Audio, SD card slot (Max. 256GB), Vehicle & human body detection,reset button
    Network Services
    Protocol HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc.
    P2P Yes
    Web IE , Firefox (32bit esr), etc.
    Media CMS, Android, IOS
    O-N-V-I-F 17.06 compatible
    General
    Network Port 1-RJ45, 100Mbps, POE optional
    Power Supply Default: PoE (12V DC ± 10% optional)
    Power Consumption < 8 W
    Operating Temp. -30°C-(+60)°C, 10%-90%RH

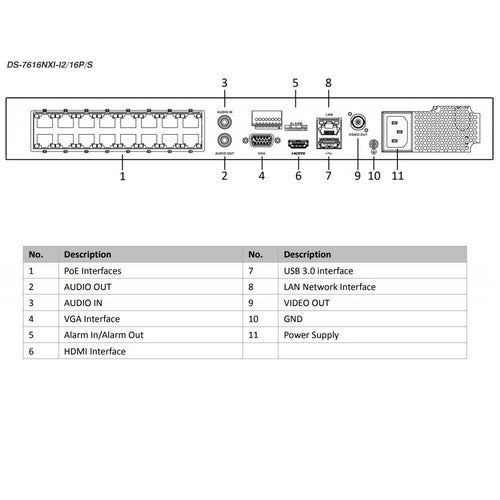

    DS-7616NXI I2/16P/S

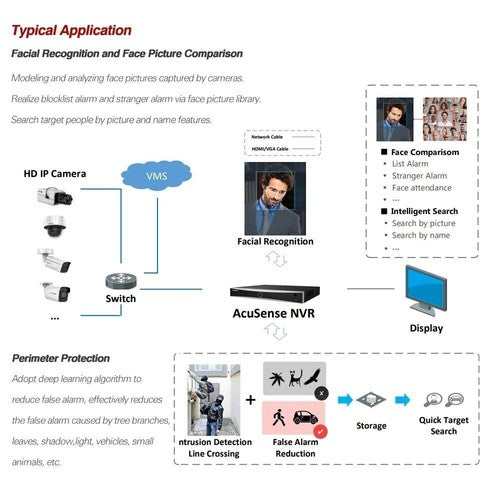

    • Facial Recognition
    Face Picture LibraryUp to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)
    Face Picture Comparison4-ch face picture comparison alarm
    Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search
    Facial Detection And Analytics Performance1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
    Motion Detection 2.0
    Human/Vehicle Analysis16-ch
    Perimeter Protection
    Human/Vehicle AnalysisUp to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
    Video And Audio
    IP Video Input16
    Incoming Bandwidth160 Mbps
    Outgoing Bandwidth256 Mbps
    HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
    VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
    Video Output ModeHDMI/VGA independent output
    CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
    Audio Output1-ch, RCA (Linear, 1 KΩ)
    Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
    Decoding
    Decoding FormatH.265,H.265+,H.264,H.264+,MPEG4
    Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
    Playback ModeNormal/Smart, Event, Tag, Eternal File
    Synchronous Playback16-ch
    Live View Window Division1/4/6/8/9/16
    Aux Port Window Division1/4/6/8/9/16
    Decoding Capability16-ch @ 1080p (30 fps)
    Audio CompressionG.711ulaw,G.711alaw,G.722,G.726,MP2L2
    Network
    Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

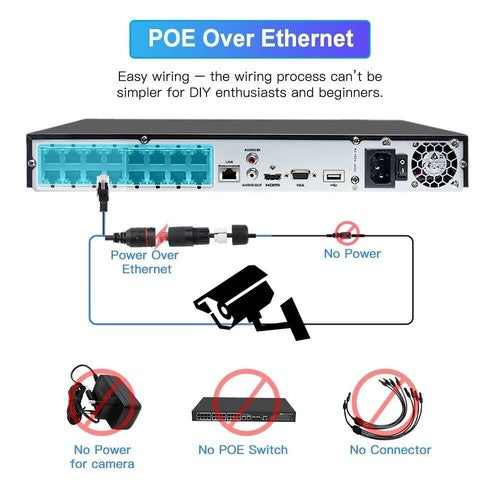

    PoE
    Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
    Power≤ 200W
    StandardIEEE 802.3 af/at
    Auxiliary Interface
    SATA2 SATA interfaces
    CapacityUp to 10 TB capacity for each disk
    Serial InterfaceRS-485 (half-duplex), RS-232, Keyboard
    Alarm In/Out4/1
    USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
    General
    Power Supply≤ 280 W
    Consumption≤ 15W
    Working Temperature-10℃~+55℃
    Working Humidity10%~90%
    Chassis1U
    Dimension (W × D × H)385 × 315 ×52 mm ( 11.6"× 9.5" × 1.6")
    ≤ 3 kg (6.6 lb)
